Modelica.Fluid.Examples.HeatExchanger

Demo of a heat exchanger model

Information

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Package Content

Name	Description
HeatExchangerSimulation	simulation for the heat exchanger model
BaseClasses	Additional models for heat exchangers

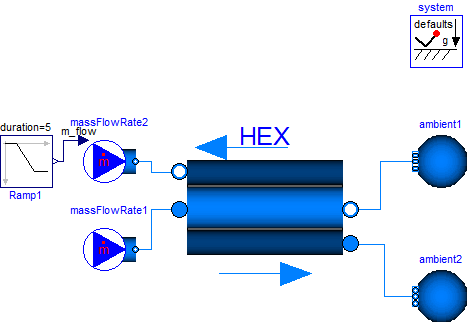

Modelica.Fluid.Examples.HeatExchanger.HeatExchangerSimulation

simulation for the heat exchanger model

Information

The simulation start in steady state with counterflow operation. At time t = 50, the mass flow rate on the secondary circuit is changed to a negative value in 5 seconds. After a transient, the heat exchanger operates in co-current flow.

Extends from Modelica.Icons.Example (Icon for runnable examples).

Parameters

Connectors
